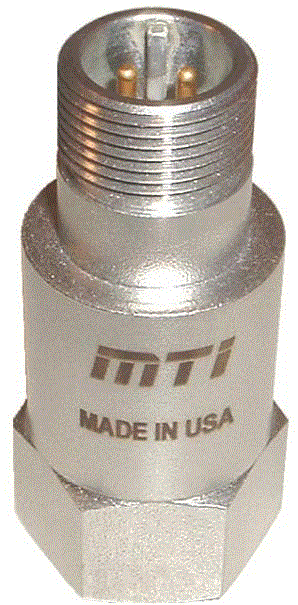

Product: LPS 1252
Loop Power Vibration Sensor/Transmitter, Velocity, 4-20 mA Output, Top Exit.
  Common Applications

Industries Served
• Automotive
• Pharmaceutical
• Pulp and Paper
• Wastewater Treatment
• Manufacturing
• Power Generation
• Steel

Typical Applications
• Air Compressors
• Conveyers
• Dryer Sections <250° F
• Fourdriniers
• Motors
• Presses and Stamping
• Roll and Process

Equipments
• Air Handlers
• Cooling Towers
• Fans
• Gear Boxes
• Press Sections
• Pumps
• Spindles

Measurement Type
• Portable
• Permanent Mount







 Performance Specifications English Metric
Output, 4-20 mA Measurement Range 0-0.5 IPS (0-12,7 mm/sec)
0-1 IPS (0-25,4 mm/sec)
0-2 IPS (0-50,8 mm/sec)
0-10 mm/sec (0-0,4 IPS)
0-20 mm/sec (0-0,8 IPS)
Tolerances
4 mA (± 5%)
20 mA (± 20%)
 Electrical
Power Requirement (Loop Powered)
Voltage Source 		15-30 VDC
Electromagnetic Sensitivity CE
Sealing Welded, Hermetic
Submersible Depth (Integral Cable) 500 ft 152 m
 Physical
Sensing Element PZT Ceramic
Sensing Structure Shear Mode
Weight 2.9 oz. 82 grams
Case Material 316L Stainless Steel
Mounting 1/4-28 M6x1
Connector 2 Pin MIL
 Mechanical
Mounting Torque 2 to 5 ft. lbs. 2,7 to 6,8 Nm
 Supplied Accessories
Mounting Hardware 1/4-28 Stud M6x1 Adapter Stud
Calibration Certificate CA10 CA10

Sensor
Cable Options
Termination connector
A1
no Cable

 Z1
BNC Jack
A2
Integral Cable

Z2
BNC Plug

A3
Armored Integral Cable

Z3
Turk Jack
    Z4
Blunt Cut
Measurement Range
Range Type
0
0-0.5 IPS (0-12,7mm/sec)
R
RMS
1
0-1 IPS (0-25,4mm/sec)
P
Peak
2
0-2 IPS (0-50,8 m/sec)
Frequency Range +/- 3dB
3
0-10 mm/sec (0-0,4 IPS)
1
600-60,000 CPM (10-1000 Hz
4
0-20 mm/sec (0-0,8 IPS)
2
180-150,000 CPM (3-2500 Hz)

ORDERING INFORMATION
LPS 1252 LPS 1252- (MR)-(RT)-(FR)-(CO)-(Armor Lenght in fett)-(Cable lenght in feet)-(T)
LPS 1252- (MR)-(RT)-(FR)-(CO)-(Cable lenght in feet)-(T)
